| Tên thương hiệu: | Luowave |
| Số mẫu: | Luowave X440 PRO |
| MOQ: | 1 |
| giá bán: | $26,000.00 |

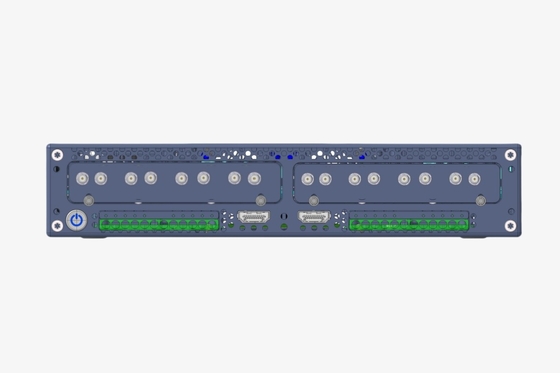

Luowave X440 PRO is a high-performance software-defined radio (SDR) device based on a direct RF sampling architecture, featuring 8 transmit and 8 receive channels. It supports an intermediate frequency (IF) range of 30MHz to 4GHz, delivering a maximum bandwidth of 1.6GHz in single/dual-channel mode, while maintaining 400MHz per channel in 8-channel mode. Equipped with 12-bit ADC and 14-bit DAC, it achieves a sampling rate of up to 4GSps.
Powered by Xilinx Zynq UltraScale+ RFSoC FPGA and a quad-core ARM processor, the device offers exceptional real-time signal processing capabilities. Its outstanding phase coherence ensures <1° RMS phase stability across internal channels and <2° RMS between multiple units, making it an ideal solution for demanding applications such as MIMO systems, beamforming, and high-precision direction finding.
Block Diagram
Xilinx Zynq UltraScale+ ZU28DR RFSoC FPGA
The ZU48DR RFSoC offers doubled FPGA resources, higher channel capacity, and superior phase coherence compared to ZU28DR, enabling cutting-edge wideband and multi-antenna applications.
Ultra-low Phase Noise
Its outstanding phase coherence ensures <1° RMS phase stability across internal channels and <2° RMS between multiple units, making it an ideal solution for demanding applications such as MIMO systems, beamforming, and high-precision direction finding.
Software Supported
USRP-LW Software Defined Radio Family
|
|
