With the advancement of wireless communications, radar detection, and electronic reconnaissance technologies, the demand for multi-channel synchronous signal acquisition has become increasingly critical. LUOWAVE has developed a high-precision 16-channel synchronous signal acquisition system based on eight USRP-LW N321 devices. This system enables parallel acquisition and precise time-frequency alignment, supporting key applications such as spatial spectrum direction finding and MIMO systems.
The 16-channel synchronous signal acquisition system is built on LUOWAVE USRP-LW N321 platform, consisting of USRP-LW N321 units, a host controller, a network switch, an OctoClock-LW-G clock source, and a signal generator.
The system employs eight USRP-LW N321 devices (totaling 16 channels), all connected via 10G fiber optics to the switch and synchronized by an OctoClock-LW-G clock source. A signal generator provides the local oscillator (LO) signal, which is distributed via a power splitter to ensure phase coherence better than 1° across all channels. A host server with 100G fiber connectivity enables real-time monitoring and data acquisition, delivering high-precision synchronized signal data for advanced research applications such as high-accuracy spatial spectrum direction finding and MIMO transceiver system design.
The USRP-LW N321 serves as the RF front-end, covering a frequency range from 3 MHz to 6 GHz with up to 200 MHz instantaneous bandwidth per channel. Its high-precision synchronization interfaces, distributed architecture support, and programmable flexibility make it ideal for multi-channel synchronous acquisition systems.

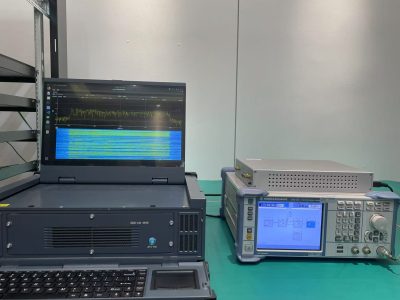

A high-performance server equipped with a 100G accelerator card is recommended for real-time baseband signal processing and high-speed data transfer, ensuring robust support for complex system prototyping and theoretical validation. In this system, we use SDR-LW 4940 for host controller.
Provides 10 MHz and PPS references to synchronize all USRP-LW N321 units, ensuring precise timing and trigger alignment.
An external LO signal is generated and split into eight paths via a power divider, feeding into the LO inputs of all USRP-LW N321 units to maintain phase synchronization.
Connects the server and eight USRP-LW N321 devices via 10G fiber optics, while the server interfaces through a 100G fiber link for high-throughput data transmission.
The OctoClock-LW-G supplies eight 10 MHz clock outputs and eight PPS sync signals.

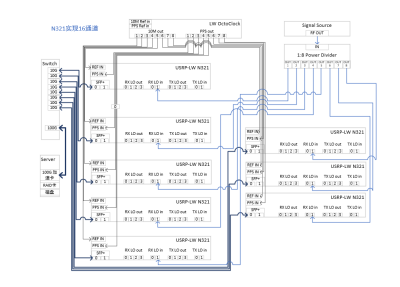

A high-stability signal generator feeds an 8-way power splitter, delivering LO signals to all USRP-LW N321 units via equal-length cables to ensure frequency, phase, and time synchronization.
SDR front-end data is transmitted to the server via 10G SFP+ interfaces.
Each USRP-LW N321 supports two RX and two TX channels, connected via RF cables to an antenna array arranged in a specific configuration.
Frequency Range: 3 MHz – 6 GHz (asynchronous), 450 MHz – 6 GHz (synchronous)
Signal Bandwidth: Up to 200 MHz (3 dB), max sampling rate of 250 Msps (configurable as integer submultiples of master clock: 200/245.76/250 MHz)
Channels: Standard 16-channel setup (expandable)
Storage: 64 TB SSD (supports 2-hour recording at 16 ch × 122.88 Msps)
Phase Sync: <1° phase coherence for MIMO and spatial spectrum applications
Visualization: Real-time spectrograms (max hold, average, persistence), waterfall plots
Data Format: Raw binary IQ files compatible with MATLAB/third-party tools
Playback: Long-duration recording with selective segment replay
GPSDO: Optional built-in GPS for precise geolocation and timestamping
